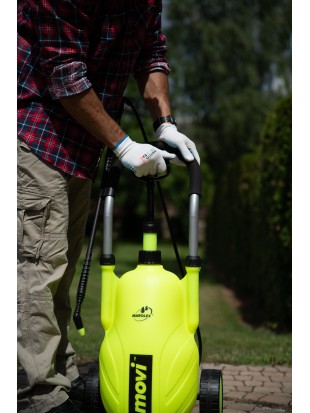

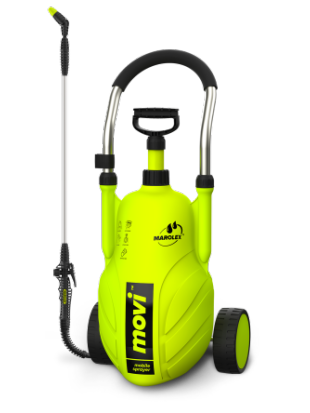

Manual pressure sprayer on MOVI wheels + free hose 500 cm
Manual pressure sprayer on MOVI wheels + free hose 500 cm
Manual pressure sprayer on MOVI wheels + free hose 500 cm
Manual pressure sprayer on MOVI wheels + free hose 500 cm
Manual pressure sprayer on MOVI wheels + free hose 500 cm
Manual pressure sprayer on MOVI wheels + free hose 500 cm

Manual pressure sprayer on MOVI wheels + free hose 500 cm

Total volume: 18l Working volume: 16 l Dimensions: 79x39x34 cm Net weight: 4.2 kg Working pressure: 0.35 MPa
Pinterest
Article code:
OEM:
MRP16M
Tax rate
22 %
Price with VAT:
81,66 €
ET of delivery
Notify me when item is available:





MOVI Wheel pressure sprayer

1. PURPOSE OF USE

The MOVI wheeled pressure sprayer is intended for the implementation of care and protection measures with aqueous solutions of plant protection products: insecticides, fungicides, herbicides and fertilizers. It is also intended for the use of organic preparations based on paraffin oil and other herbal preparations. It is recommended to use one spray for the selected group of preparations.

ATTENTION !!! The use of surfactants such as acids or bases, disinfectants, impregnating agents, solvent-containing agents, cleaning agents or petroleum products is not permitted.

Failure to observe the above may result in damage to the pressure vessel or a lasting effect on the user's health.

2. MOVI PRESSURE SPRAYER EQUIPMENT

The contents of the package are shown in Figure 1: a) a container with a safety valve, a tube with springs and a fan for feeding with a handle; b) telescopic rod with adjustable nozzle MR1.5 mm; c) pump; d) holder with cap and nuts; e) a funnel with a strainer; f) instructions for use with a warranty card; g) pump set: lubricant, seal, 0.1mm nozzle, parts for APS set. The manufacturer reserves the right to change the equipment of the pressure sprayer.
3. PREPARATION AND OPERATION OF THE MOVI PRESSURE SPRAYER

1. Read the operating instructions before using the MOVI pressure sprayer.
2. Assemble the MOVI pressure sprayer before starting work, attach the telescopic rod to the handle (Fig. 2b), install the holder (Fig. 2c) and tighten the nuts. Adjust the holder to the height of the user before tightening the nuts. Prepare the funnel (Figure 1a) and the pump (Figure 1c). Check the safety valve and the sealing of the spray nozzle by using a funnel to fill with clean water (Figure 2d). Insert the pump into the container and tighten the nut (Figure 3f). Fill the container with air (Figure 3b). Pull the safety valve holder (Figure 3d) and you will hear a distinct sound of released air under pressure, which confirms the correct operation of the safety valve.
3. To start working with the MOVI pressure sprayer, remove the air from the container using the safety valve (Fig. 3d), unscrew the nut (Fig. 3f) and remove the pump. Empty the water container, then pour the desired solution (Figure 2d) prepared in advance according to the instructions using a funnel, without exceeding the marked level (Figure 3e). Insert the pump, tighten the nut (Figure 3f) and create pressure in the tank using the pump piston (Figure 3b). If there is too much supply air, the safety valve opens automatically and excess air is released (Figure 3d). Adjust the telescopic rod to the appropriate length and tighten it so that the rod does not move lengthwise during work (Figure 2a). Start by spraying / spraying. Continuous operation of the pressure sprayer is possible by pressing the dosing valve button and moving it forward (Figure 5a). Release the button by moving backwards (Figure 5a). If necessary, increase the pressure by re-supplying air (Figure 3b)
4. Replacing the nozzle: to replace the round 1.5mm (yellow) nozzle with the 1.0mm (green) nozzle, unscrew the yellow nozzle cap and screw on the green nozzle cap (Figure 4a); to replace the conical nozzle with a flat jet, unscrew the nozzle cover (Figure 4a), unscrew the black nut, remove the core and seal (Figure 4b), insert the flat nozzle into the black nut (Figure 4c), insert the seal and tighten.


A spray that has once been used with preservatives must not be used for other purposes !!!


4. OCCUPATIONAL SAFETY REMARKS

1.Children, pregnant women and persons taking medication or consuming alcohol are not allowed to use the spray.
2.Before spraying for the first time, check the tightness of the sprayer and the operation of the safety valve with clean water.
3. When working with plant protection products (even during the preparation of the solution and the destruction of the packaging), consistently use protective equipment (rubber boots, gloves, coat, hat and mask).
4. It is forbidden to work with chemicals on an empty stomach and to consume food or drink while working. It is forbidden to consume alcohol at least one day before work and at least one day after work with chemicals.
5. It is forbidden to pour liquids into open water sources or biological treatment plants. This note also applies to the water used to flush the pressure sprayer and other parts of the sprayer.
6. The used sprayer must be handed over for disposal to a specialized waste manager.
7.Persons using a pressure sprayer must strictly follow all the recommendations stated on the spray package. In case of poisoning, seek medical attention.
8. It is forbidden to work with a defective spray in which the operation of the safety valve is not adequate or a spray that does not seal. The pressure vessel must be protected against impacts or falls and other mechanical damage.
9. Any interventions must be performed on a non-pressurized sprayer.
10. The sprayer must be thoroughly cleaned after each use and before service.
11. It is forbidden to use the sprayer for purposes other than those permitted in the instructions

or for use.
12. It is forbidden to store the sprayer with a filled container or under pressure.
13. The only device for supplying pressure is the pump installed in the tank - it is forbidden to use other devices for this purpose!
14. It is forbidden to use: water warmer than +40 C and highly flammable substances that could lead to an explosion, eg petrol, solvents ...
15. Changes to the sprayer or misuse can lead to poisoning of people or animals, environmental pollution, damage to the sprayer or serious accidents.
16. After work, change clothes (clean protective clothing), wash hands, face, mouth and throat and clean nose.
17. After use, rinse the sprayer several times with clean water.
18. The user is fully liable for damage caused in the event of inconsistent compliance with the instructions.
19. It is forbidden to block the safety valve or make changes to the sprayer, which can lead to permanent damage to health.
20. Before starting work, check the operation of the safety valve. For this purpose, the sprayer must be filled with pressure and the safety valve handle must be pulled (Fig. 3d), and a recognizable sound of released air is heard.
21. It is forbidden to point the spray stick in the direction of the face.
22. The sprayer must be protected from use by unauthorized persons, in particular children, during operation and storage.
23.When using other products, first make sure that they are allowed to be used in the sprayer and that they are not harmful to the spray, people and the environment.

5. WARRANTY AND REPAIR CONDITIONS

1.The warranty period is 12 months in full and 60 months per container from the date of purchase and upon submission of the original invoice.
2. The sprayer must not be repaired if there are residues of used liquids in it.
3. The complaint is accepted by the importer, damaged parts or a spray can be delivered to the importer. The warranty is valid only if the user has strictly followed the instructions and followed the purpose of use.
4. In the event of a complaint, it is necessary to demonstrate the fault or to accurately describe the malfunction.
5. Repairs may only be carried out with the original parts of the manufacturer.
6. If a factory defect is found during the warranty period, the importer is obliged to replace the sprayer within 14 days.
7. The amount of repairs after which the seller may not refuse to replace the sprayer with a new one is 3 (three).
8. Repairs that are part of regular maintenance are not covered by the warranty.
9. The importer and the manufacturer do not accept the warranty if the sprayer is affected by the pressure element, the sprayer has not been used or stored properly.
10.Only the importer and the manufacturer shall not be liable for any mechanical damage which has occurred during the use of the sprayer through the fault of the user. Replacement of damaged parts is only possible for a fee.

6. STORAGE AND MAINTENANCE OF THE PUMP

1. Do not store the sprayer in direct sunlight or at a temperature lower than +4 C.
2. After finishing work, rinse the sprayer thoroughly with clean water and release the pressure in the container. Maintain the sprayer regularly.
3. Always make sure that the sprayer is not under pressure during maintenance. Relieve the pressure by pulling the safety valve (Figure 3d). Clean and blow air spray; unscrew the hose from the handle, remove the filter (Figure 5b) and clean it under running water with a soft brush, then check that the piston works smoothly. If the piston stops, unscrew the nut and pull the piston out (Figure 3a), lubricate the seal (Figure 6e) and the inner surface of the cylinder walls with silicone grease (Figure 7i) then check that the lower pump seal is clean (Figure 6f) and wash if necessary. Then push the piston back and tighten the nut (Figure 3a). Unscrew the valve screw, pull out the piston (Figure 5c), clean it, lubricate it with silicone grease (Figure 7i) and refit it by tightening the nut. Unscrew the nozzle nut, remove the nozzle and rinse thoroughly with water (Figure 4a). Then check that the safety valve is working properly - when you pull out the lever, it must return to its original position. If you encounter a problem, unscrew the safety valve nut, pull it out, clean it, and lightly lubricate it with silicone grease (Figure 3c). Reassemble by tightening the safety valve nut until you feel resistance.
4. Figure 6 shows a diagram of the elements that need to be maintained or. they can be replaced by purchasing the Z08j maintenance set (Figure 7). Videos with more detailed instructions can be found on the manufacturer's website: www.marolex.pl
5. Only silicone lubricants may be used for maintenance and repairs. The use of other lubricants can damage the sprayer.

7. TROUBLESHOOTING


Manufacturer: MAROLEX Sp. z o.o., Poland
Importer: DDD Trade and consulting Bistriška c.7, 1241 Kamnik
tel.041 / 760 749 www. zakladnicadobrihidej.si/prsilke-na-leta
